I3200 H4/H8
Poly Sublimation Printer
Reliable wide-format
I3200 H4/H8
Equiped with economic, reliable and durable print head.
Uniform heating system, constant and stable.
Bulk ink supply system with ink shortage alarm.
Reliable and Safety assure.
Technical Specifications
we have the best quality
Model
I3200 ∗ 4
I3200 ∗ 8
Printhead and Quantity
13200-A1 4pcs
13200-A1 8pcs
Printing width
1.9M
Media
Heat transfer paper
RIP Software
RIIN, Main Top, Photoprint, Neostampa
Temperature/Humidity
Temperature: 20-26°C, Humidity: 45-70%
Power
430W/External dryer: 2400W
1300W/Bottom dryer: 2400W
Dimension
L3165 ∗ W965 ∗ H1865mm
L3495 ∗ W1395 ∗ H1765mm
Package Dimension
L3530 ∗ W760 ∗ H850mm
L3140 ∗ W1190 ∗ H1760mm
Net Weight
305KG
472KG
Gross Weight
375KG
590KG
I3200
Our printers are powered by the EPSON I3200 print head, which is not only durable but also provides exceptional performance. The print head is perfectly matched with our patented DTF inks and self-developed DTF film, ensuring the best printing results.

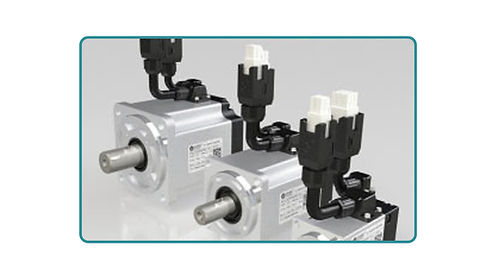

Servo motor
High-resolution optical encoder.
High-stability, high precision, high dynamic response
Super reliable in long run.
Ink Shortage alarm
The whole system is equipped with an ink shortage alarm assuring nozzles open and reduce unexpected ink waste due to lack of inks in ink-tank.
Anti-collision sensor
Anti-collision sensors are installed on both sides of the carriage to protect print heads and staff safety at the same time.
1,000m-10,000m take-up/feeding system
Printer is equipped with excellent take-up/feeding system, from standard 1,000m to 10,000m optional.
Great sucking platform
A well-balance air sucking platform which ensures the paper feeding accurately and stably, less paper curling and uniform feeding speed along the printing width. Key element to great printing quality.
